Features
YY-SJ400 adopts Windows 7 Chinese interface operating system and humanized Chinese interface,which is easyto learn and understand and easyto operate.
This machine adoptsa unique intelligent and rapid identification and positioning system,high-definition digital camera positioning,and corrects the gap deviation betweenthe manual and the fixture.
The parametersof glue volume(0.001-100mg),thickness,dispensing time,dispensing speed,and stoppage time can be changed at will.The glue output isstableand no glue is leaked.
The products can be placed arbitrarily,the systemcan auto matically and quickly identify the position todispense glue,and the pressure barrel can be selected to store glue,saving thetime of changing glue.
This machine has a plastic head that applies for independent intellectual property rights.Adopt hard waretime controlglue quantitys witch,fast glue out and high precision.
The machine will automatically stop if it cant recognize the object.
According to the needs of the process,the platform and glue gun can be heated(option).
This machine is suitable for fluid dispensing/spraying:UV glue,silica gel,black glue,red glue,COB glue,solder paste,thermal paste,instant glue, silver glue,EMI conductive glue,PU crystal glue,epoxy resin,paint,All kinds of glue fluid,etc.
Technical Parameter
|
Model |

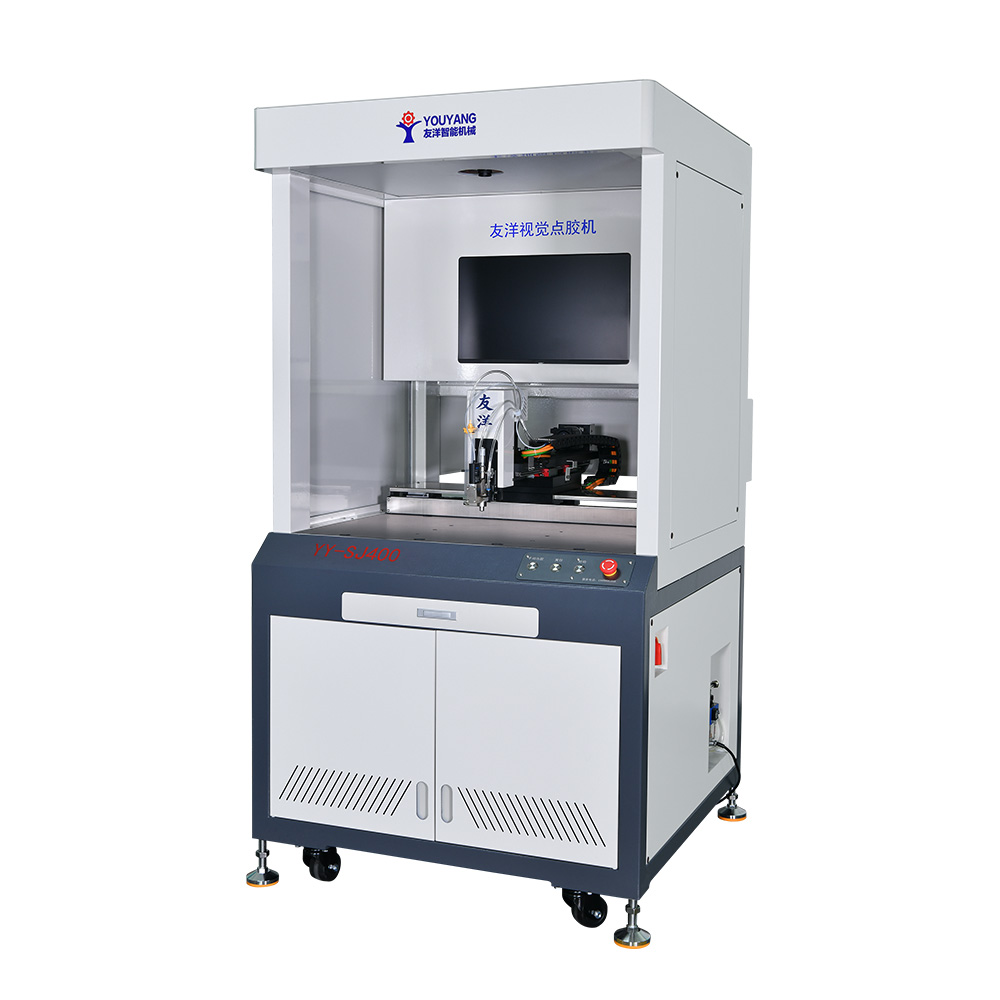

YY-SJ-400 Panoramic Vision Dispensing Machine |
|
Valid Itinerary |
400*300*60mm(Stroke size can be customized upon request) |
|
Maximum Speed |
10-90k/h(Planking) |
|
CCD Resolution |
0.05mm |
|
Repeatability |
±0.01mm |
|
Glue Accuracy |
±0.0001mm |
|
TransferMethod |
Screw, imported servo, motor |
|
Programming Interface |
Windows7 |
|
Visual System |
Self-developed visual capture and localization system software |
|
Dispense Style |
Points, straight lines, arcs, circles, gluing, continuous gluing, gluing injection or any irregular curves |
|
Power Supply |
AC200-240V50-60Hz,1.2kw |
|
Total Weight |
Approx. 350kg |
|
Dimensions |
980*980*1850mm |
