Features
It has the functions of drawing points,lines,arcs,circles,and irregularcurve continuous tweening input programs,and can be 3D dispensing;
Continuous dispensing function for irregular curvessuch as arbitrary points,lines,surfaces,arcs,etc.;
High-speed,low-noise speed DCbrushless motor makesdispensing better;
The static eliminator can eliminate static electricity within±100V;
The automaticcompensation function of dispensing force makes the operation more convenient;
The area array of XY,the function of translation and rotation,and the reverse use of the material plate,are suitable for the positioning of different jobs.
Applicable industries
Suitable for mobile phones,laptops,3C digital products,automotive electronics,electronic components,LED,household appliances, medical equipment,new energy,LCD,SMT,RJ/network transformers, industrial electronics,handicrafts,plastics,metals,glass and hardware and other industries.
Suitable for a wide range of glue surfaces,suchas UV glue,epoxy resin,silica gel,AB glue,black glue,white glue,PU glue,instant glue,red glue,solder paste,thermal paste,polyurethane,paint, alcohol,ink,etc..
|
Model |

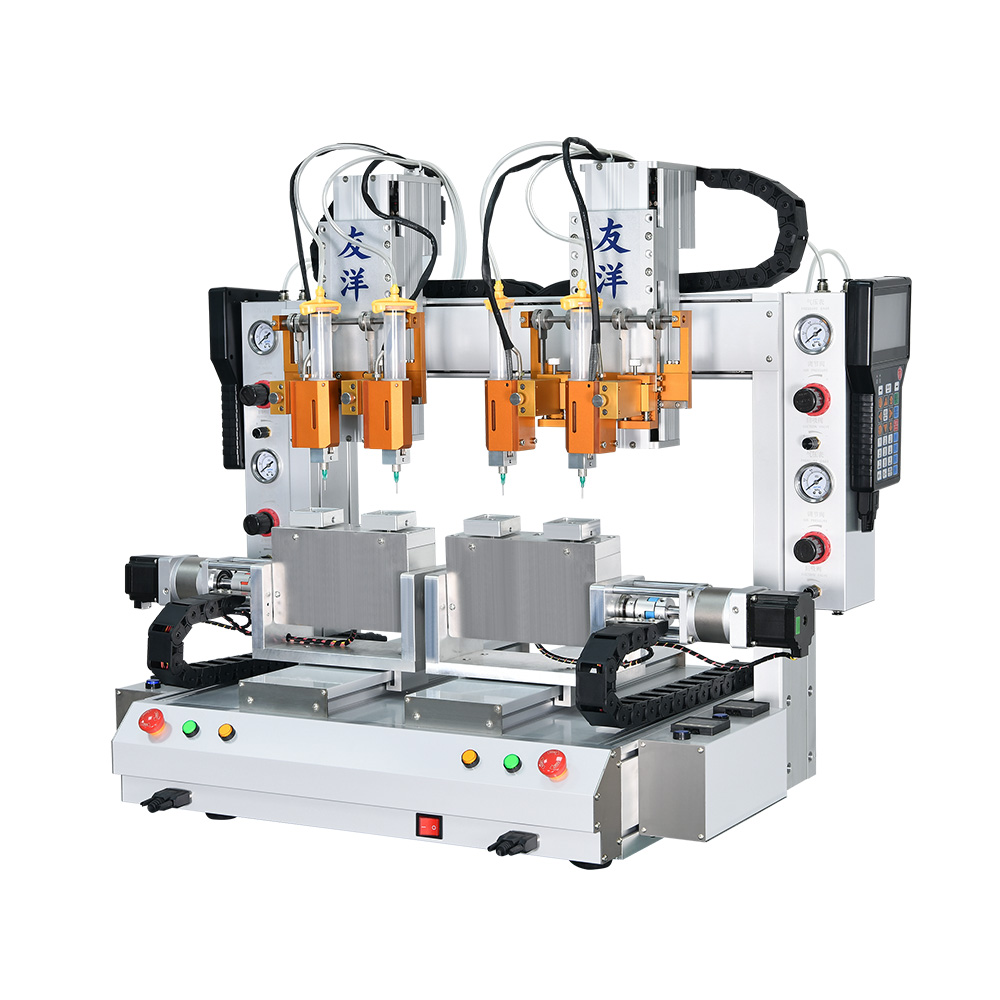

YY-441 10 axis Automatic Glue Dispenser |
|
WorkPlan |
X1 axis 200mm X2 axis 200mm Y1 axis 200 MMY2 axis 200mm Z1 axis 100mm Z2 axis 100mm R1 axis 360 degrees R2 axis 360 degrees U1 axis 360 degrees U2 axis 360 degrees |
|
Displacement Speed |
0-500mm/sec |
|
Mechanical Accuracy |
±0.02mm |
|
Repeatability |
±0.02mm |
|
Transfer Method |
X, Y, Z, R interactive mode |
|
Control System |
Programmer + 5-axis control card |
|
Double-head Fine-tuning Mechanism |
Dual-head heating system, dual heads can be independently controlled heating |
|
Double-head Glue Delivery Mechanism |
360 degree fixture rotation |
|
Noise Value |
70db |
|
Input Power |
AC220V 50-60HZ 1.2KW |
|
Air Pressure |
4-7Kg |
|
Weight |
Approx. 100kg |
